Drizzle 4-Function Brass Smart Shower Panel Set

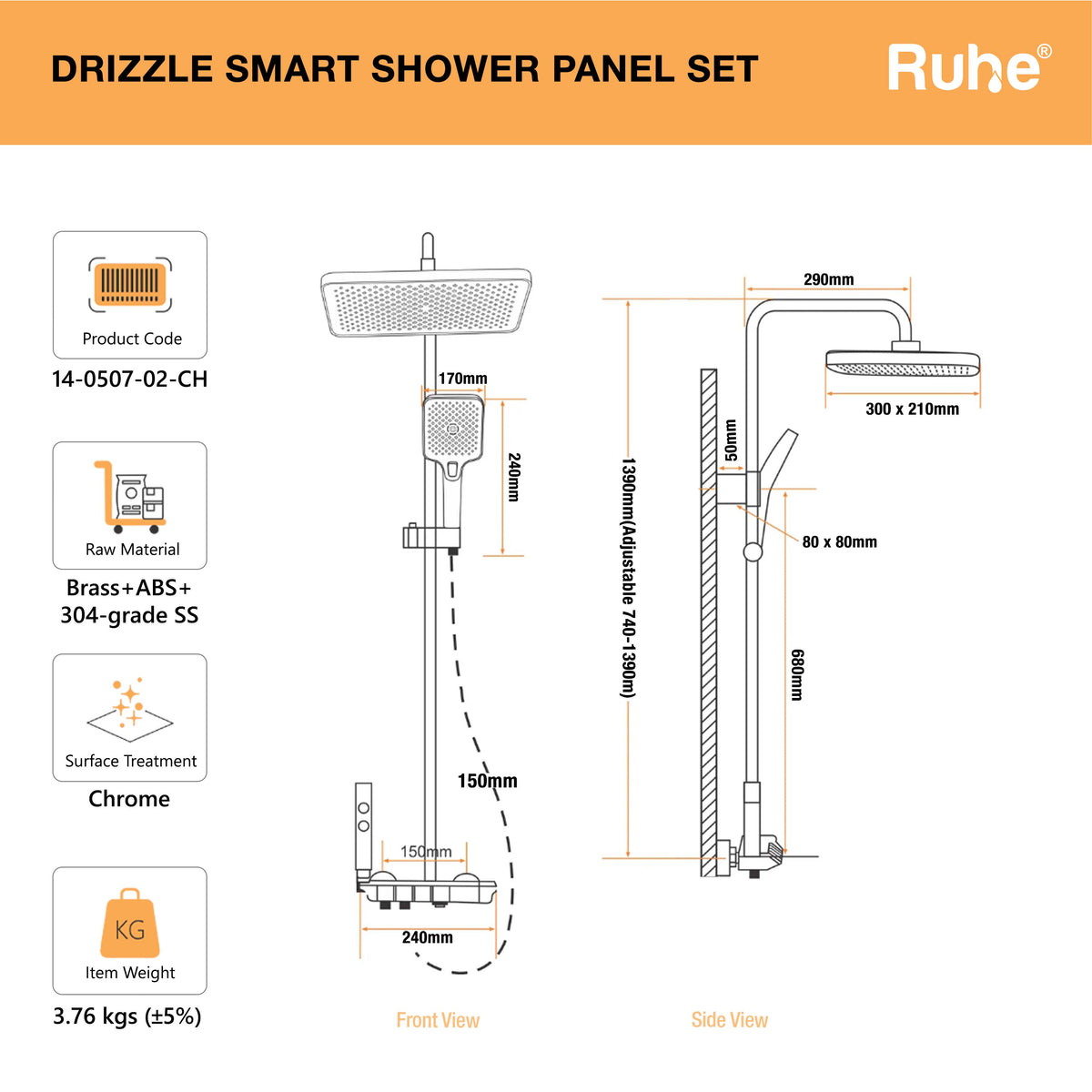

The Drizzle 4-Function Brass Smart Shower Panel Set gives you an overhead shower, a hand shower, a spray gun and a bucket spout from one wall-mounted panel. Press a piano key to turn an outlet on and press it again to turn it off. Each key works on its own, so all four outlets can run together in Spa Mode. A temperature lever mixes hot and cold water. The panel has a Solid Brass Core and a 304-Grade Steel Frame, and the Height-to-Fit Pole sets the overhead shower 750–1,400 mm above the inlets. All Fitting Parts in the Box. Finish: Gunmetal. Up to 5-year warranty. See all our Premium Smart Shower Panels.

One panel, four ways to shower

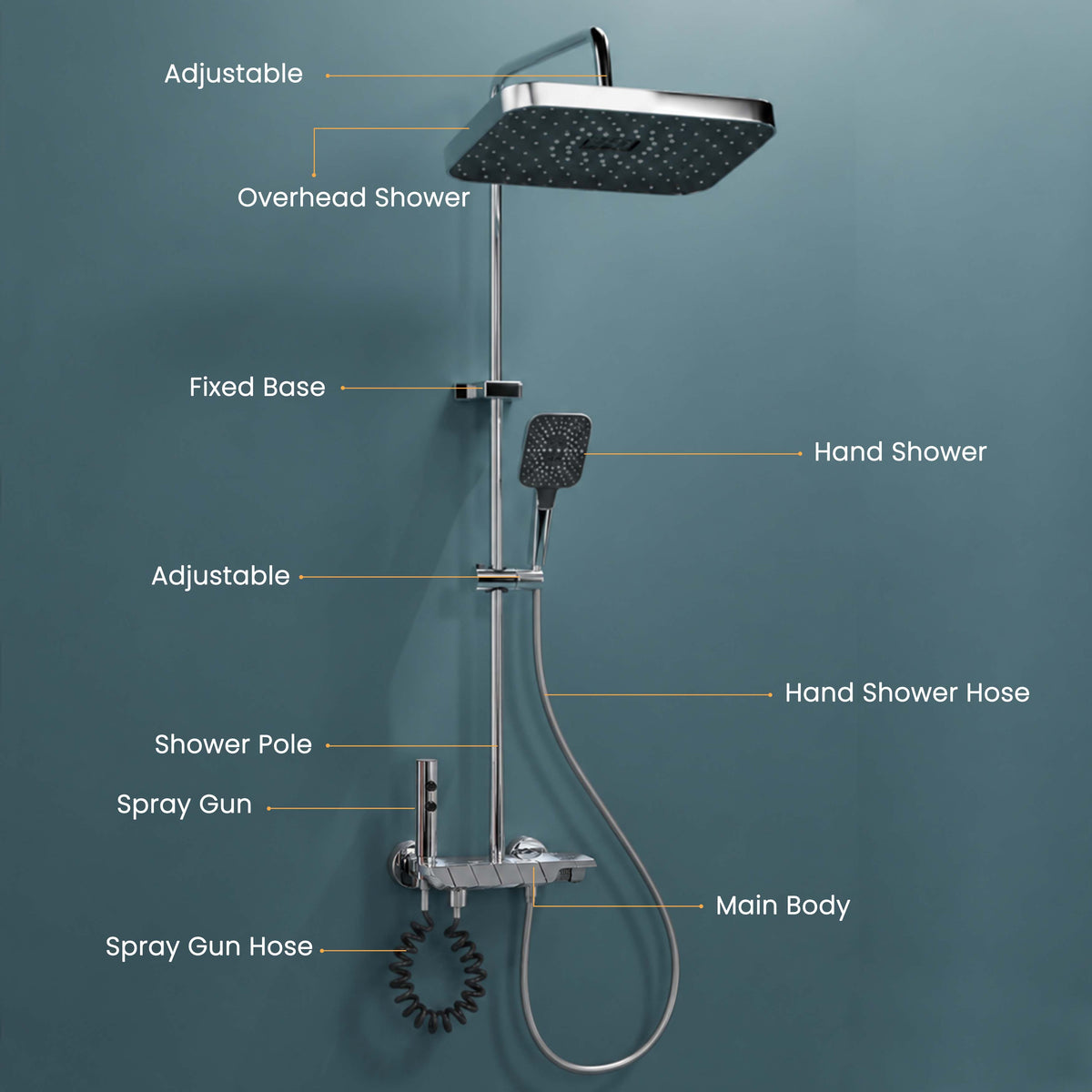

Drizzle puts an overhead shower, a hand shower, a spray gun and a bucket spout on one wall-mounted panel. Use the Monsoon Rain Canopy for a full rain shower, the 3-Mode Square Hand Shower for rinsing, the 2-in-1 Spray Gun for cleaning or as a health faucet, and the Built-in Bucket Spout to fill a bucket.

Piano-Touch Controls and Spa Mode

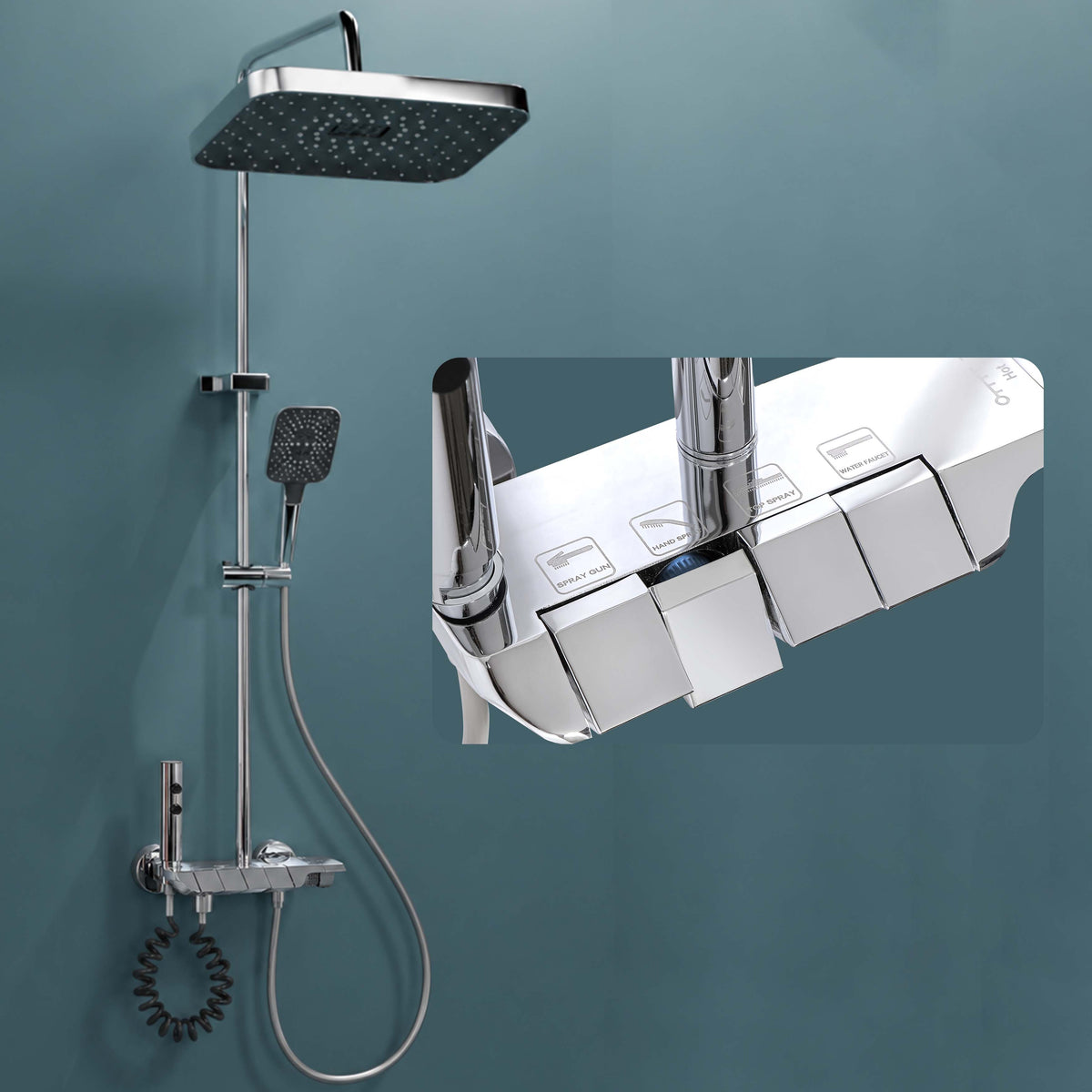

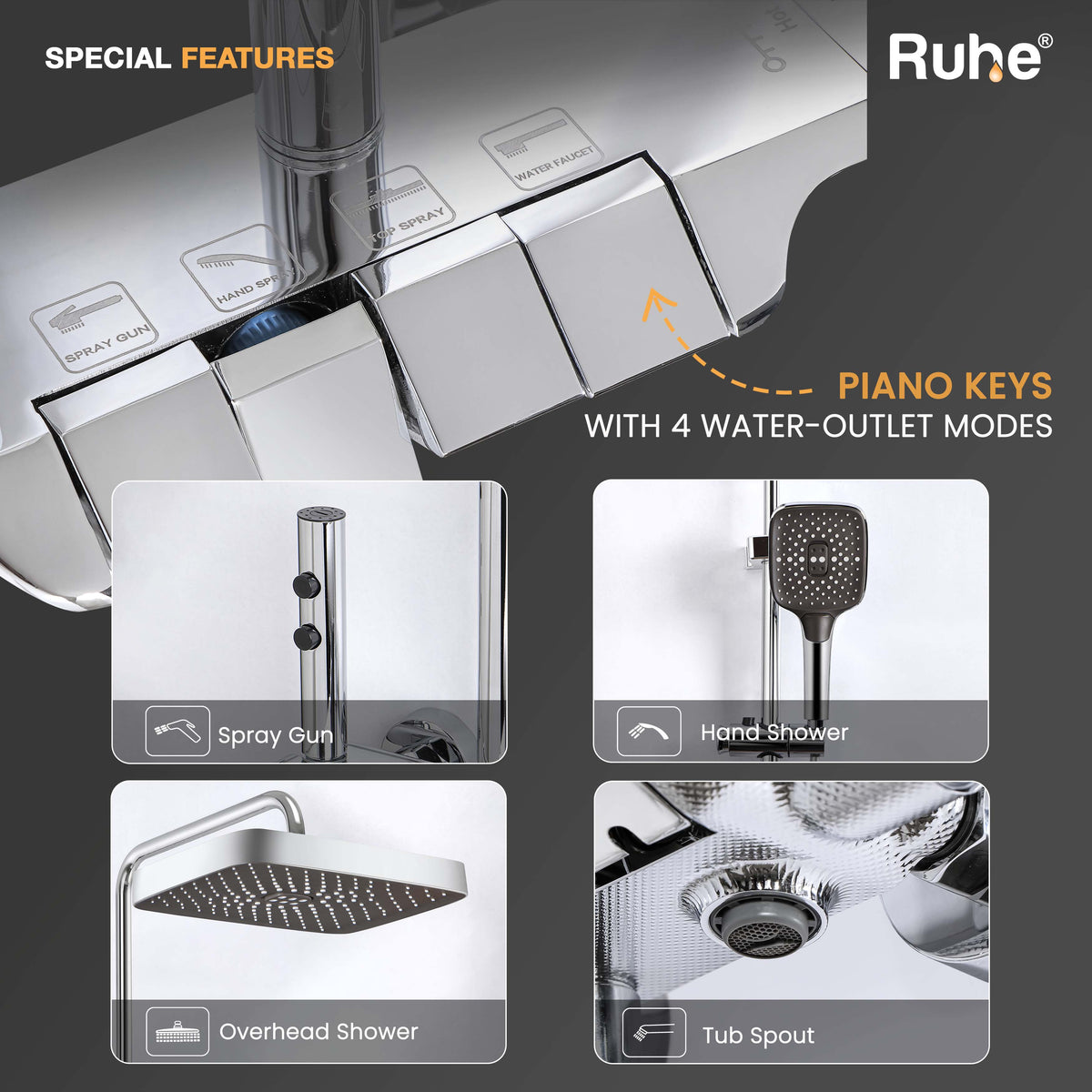

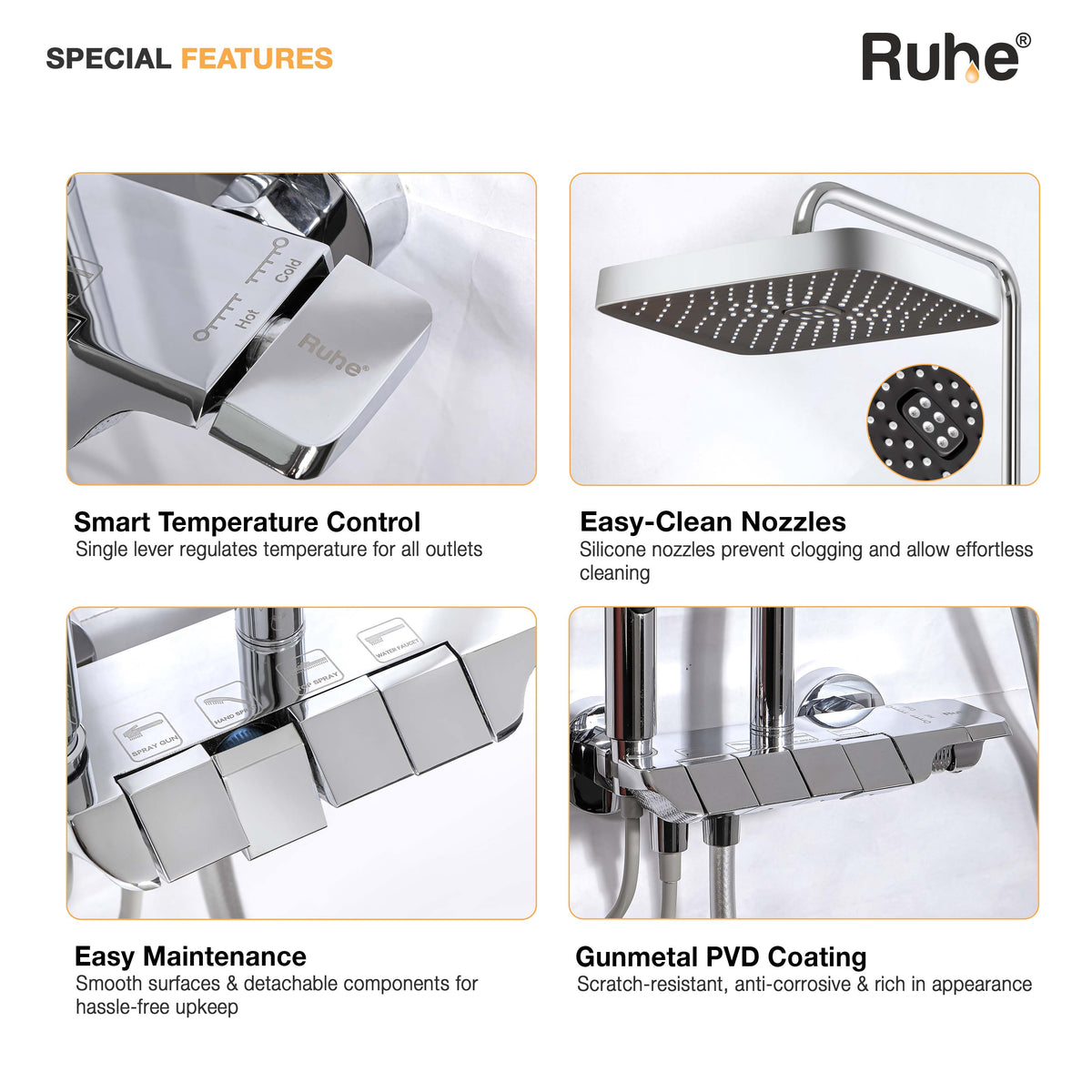

Four piano keys sit along the front of the panel, one for each outlet. Press a key to turn its outlet on and press it again to turn it off. Each key works on its own, so you can run one outlet or all four together in Spa Mode. The temperature lever mixes hot and cold water. We recommend 40 PSI (about 2.8 bar) at the inlet from a standard pressure pump (1.5 HP, 24-litre tank). Water pressure is low without a pump.

Built in brass and steel

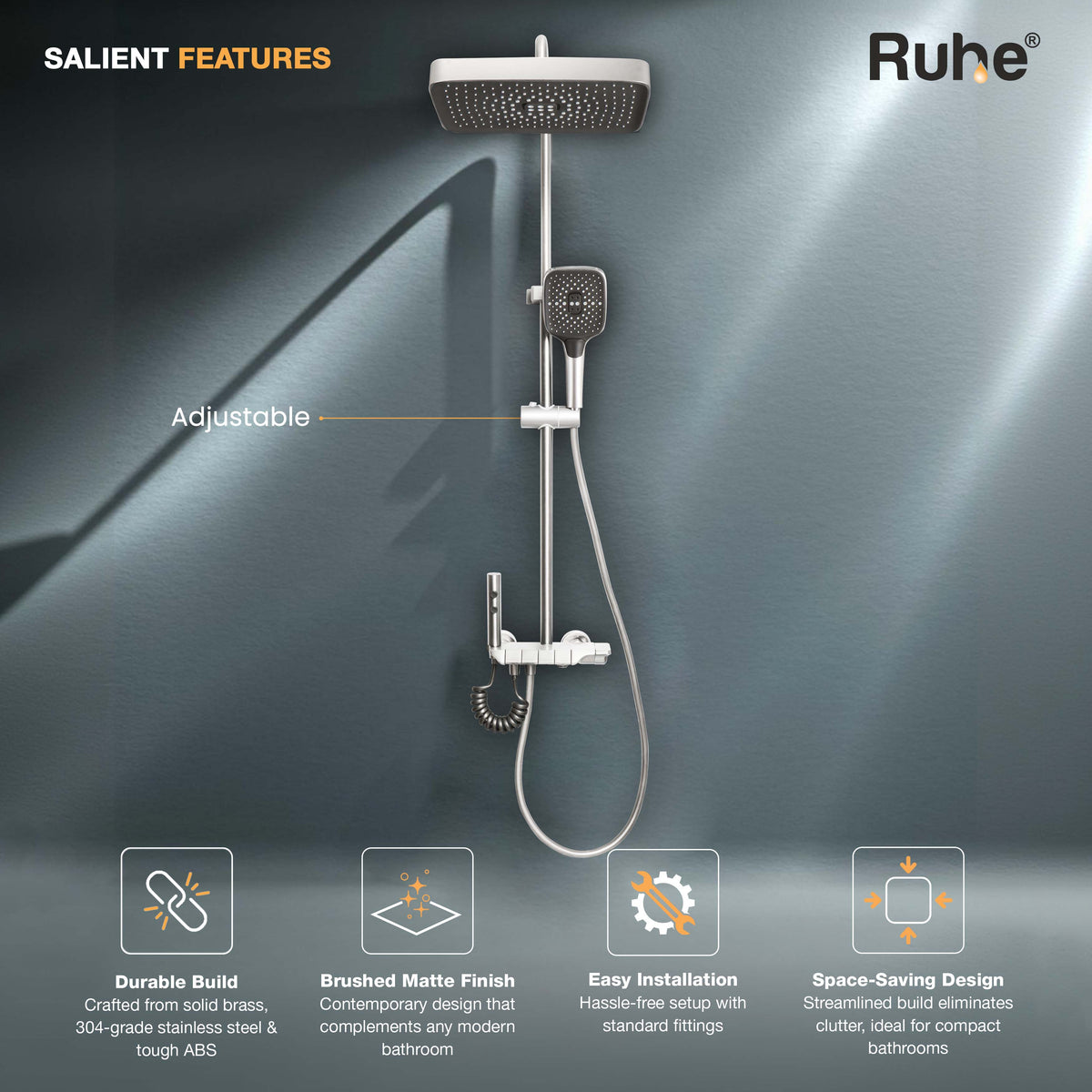

The panel has a Solid Brass Core (low-lead brass). The pole and shower arm are two 304-Grade Steel pipes, 24 mm in diameter, that you join during fitting. The Anti-Twist 1.5 m Hose Tubes have 304-grade steel nuts and standard 1/2 Inch (15 mm) ends. The outlet selector is rated for 300,000 cycles.

Monsoon Rain Canopy and 3-Mode Square Hand Shower

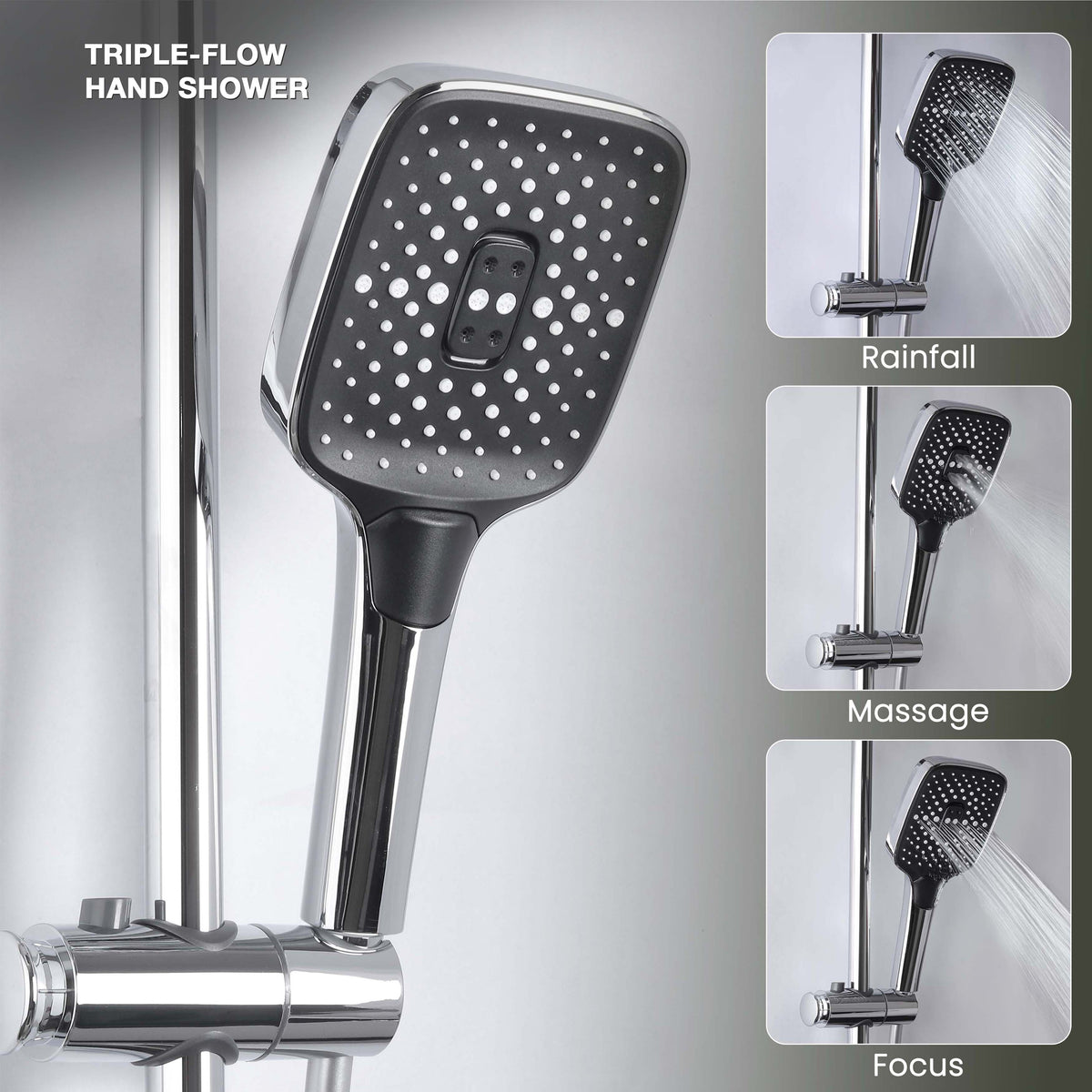

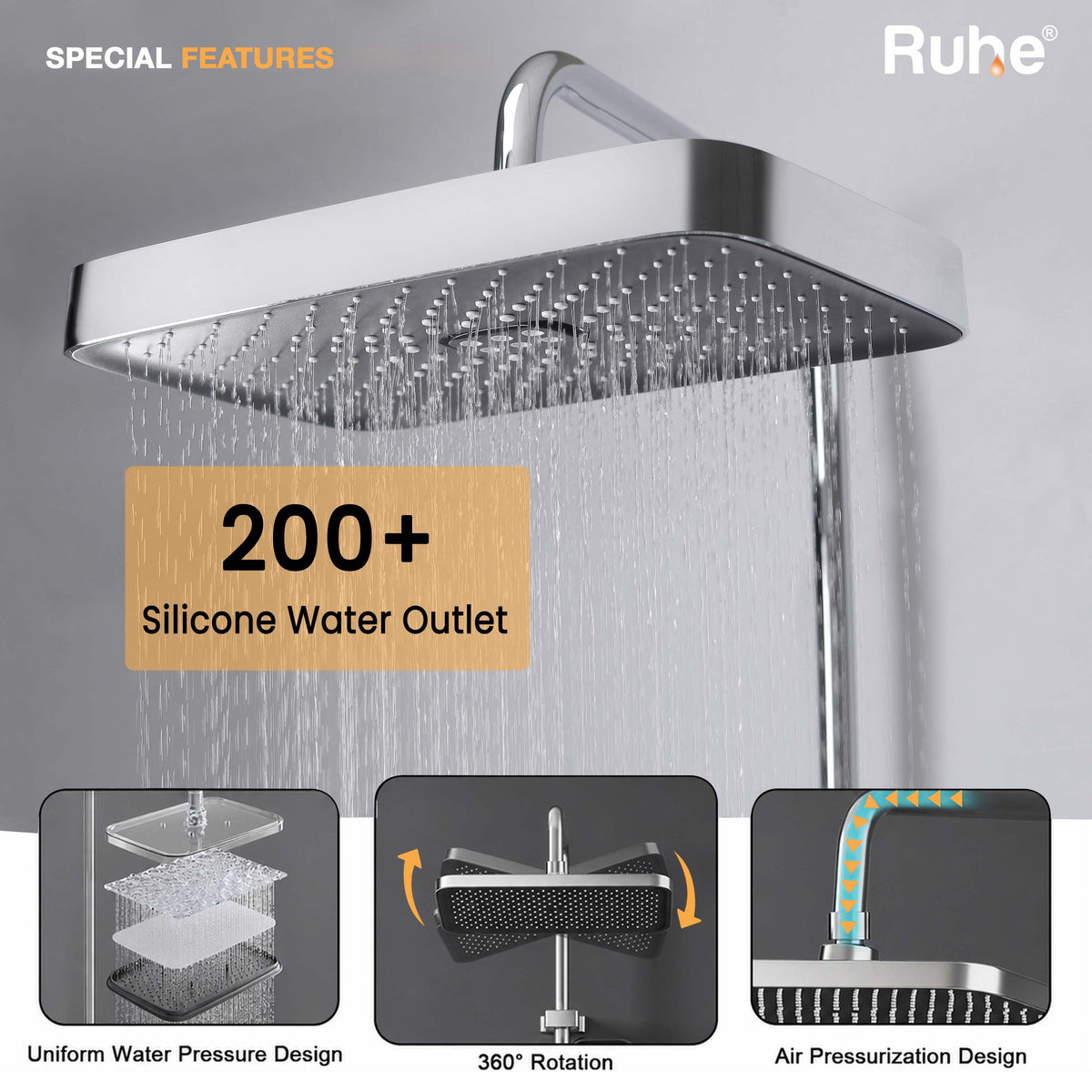

The rectangular overhead shower measures 330 × 220 mm (±5 mm) and swivels 360°. Its silicone Rub-Clean Nozzles let you clear scale with a rub of your finger. The square hand shower has a 130 × 130 mm head (±5 mm) and 3 spray modes, and its Glide Holder slides along the pole so you can set it at the height you like.

2-in-1 Spray Gun and Shelf-Top Panel

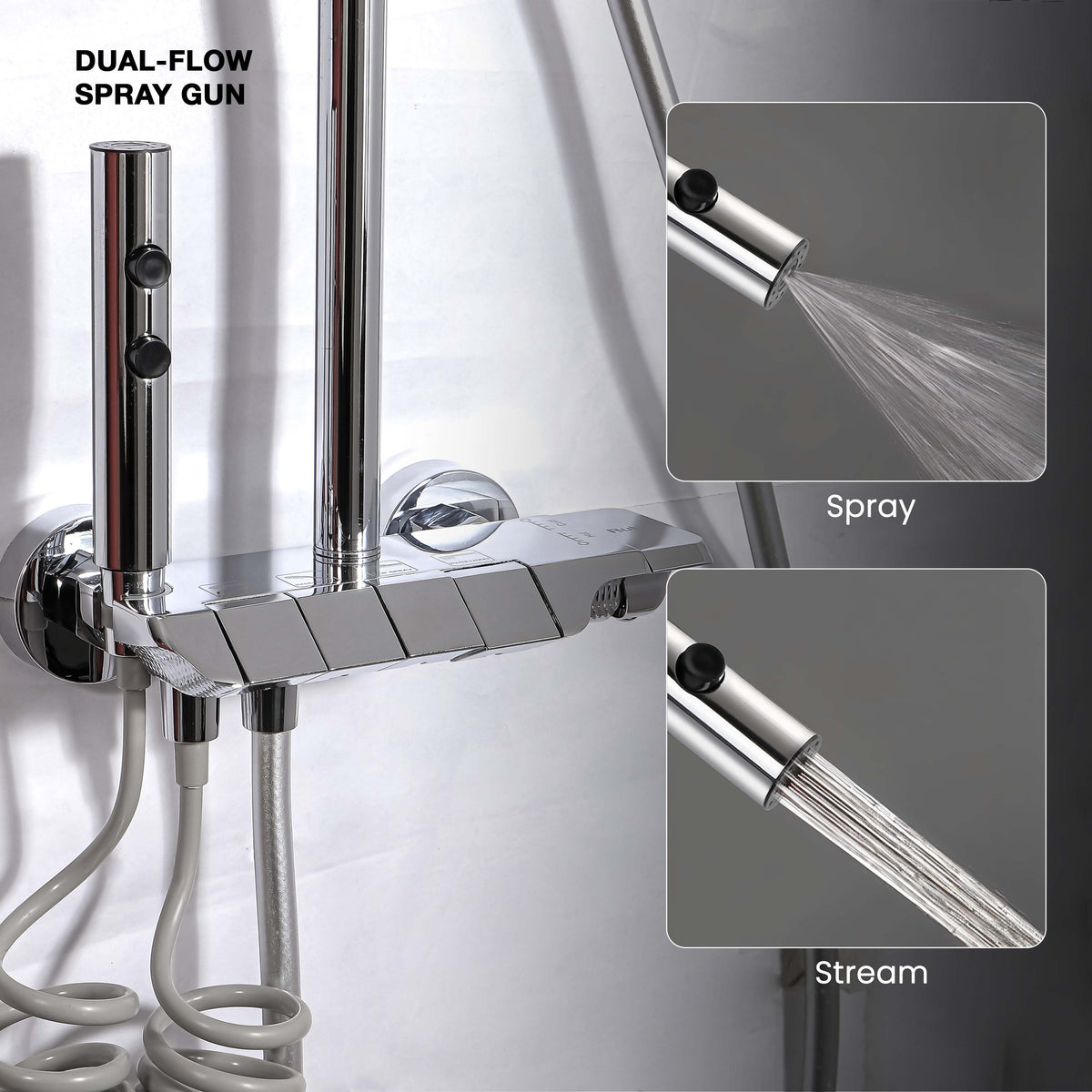

The stainless steel spray gun has 2 buttons and works as a cleaning spray or a health faucet. The Shelf-Top Panel gives you a flat top to keep your shower essentials within reach.

No-Break Upgrade for your existing wall mixer

The panel has 3/4 Inch (20 mm) inlets. The Easy-Fit Legs connect them to standard 1/2 Inch (15 mm) wall points with centres from 150 to 185 mm, at standard mixer point height, so Drizzle can replace an existing wall mixer on the same points. All Fitting Parts in the Box: legs, flanges, washers, a wall holder, wall plugs and stainless steel screws. Keep Teflon tape ready for the leg threads.

Water supply and geysers

Connect a hot and a cold supply, or two cold supplies if you have no hot water. The panel works from 1 to 12 bar, with a maximum hot water temperature of 75 °C. Works with storage geysers. Not suitable for tankless (flow-activated) instant water heaters. It works with hard water. Hard water shortens the life of the valve parts inside the panel. Rub the Rub-Clean Nozzles to clear scale and wipe the panel dry after use.

Gunmetal finish

This is the Gunmetal Drizzle: Gunmetal (electroplated gunmetal grey). Clean with mild soap and a soft cloth. Drizzle also comes in Chrome.

Installation, warranty and returns

Home Installation ₹2,199, available in serviceable cities (T&C). Up to 5-year warranty. Free onsite service for the first year, and free replacement parts for the full warranty period. 30-Day Easy Returns on unused products. Report damage, a fault or a wrong product within 48 hours of delivery, before fitting. Designed and manufactured by Ruhe. Every piece passes our 3-step quality check before it leaves the factory.

Features

Why choose

Have a question? Talk to a Ruhe expert on a video call (Mon–Sat 10 AM–6:30 PM), or see Drizzle at a Ruhe store near you.

Also called: piano shower set, shower panel set, shower column, rain shower panel, multifunction shower panel

All sizes ±5 mm · weights ±5%

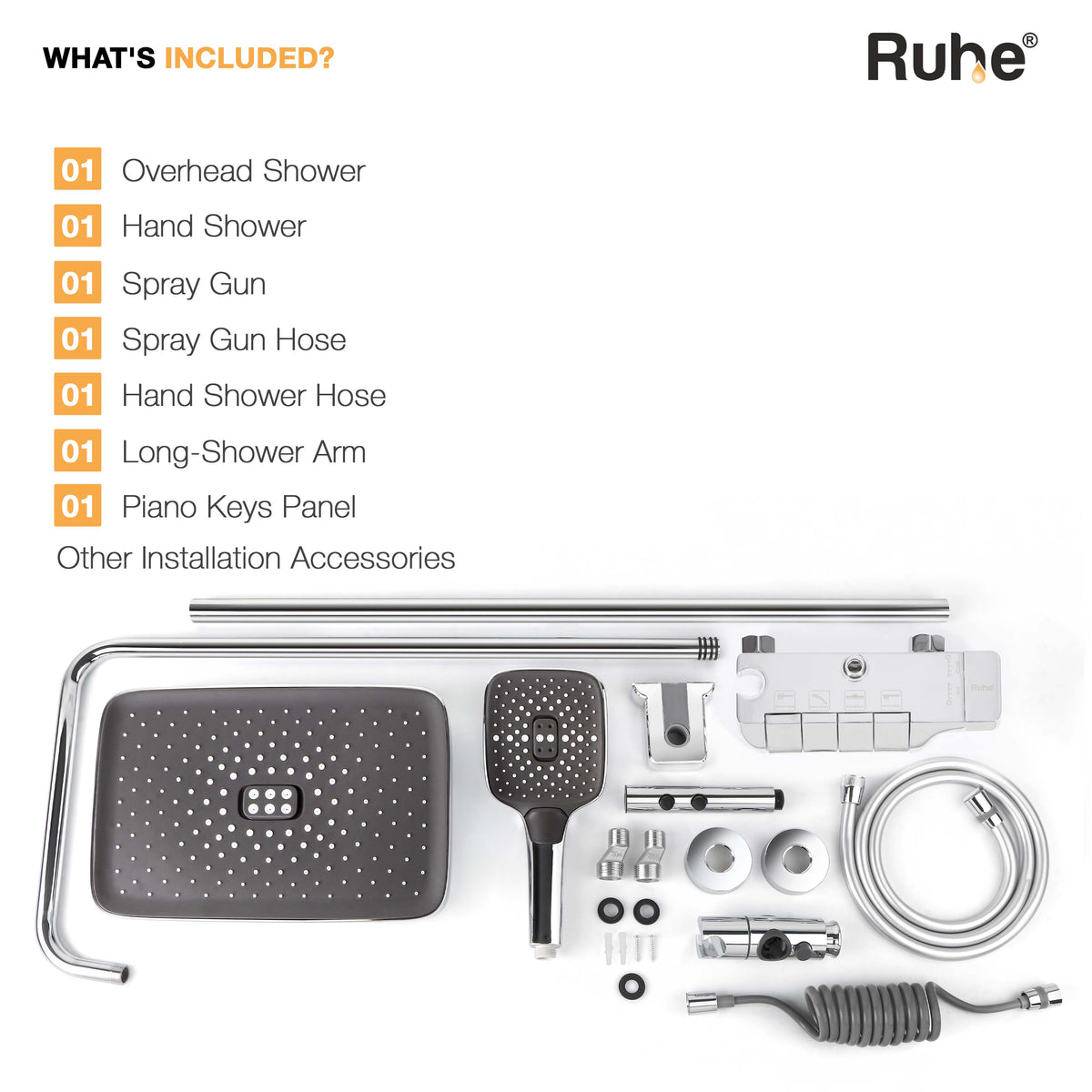

• 1 × Panel with piano keys, temperature lever and spout
• 1 × Straight pipe (pole)
• 1 × L pipe (shower arm)
• 1 × Overhead shower
• 1 × Hand shower
• 1 × Hand shower Hose Tube (1.5 m)
• 1 × Hand shower holder (Glide Holder)
• 1 × Spray gun
• 1 × Spray gun Hose Tube (1.5 m)
• 2 × Connector legs (Easy-Fit Legs)
• 2 × Flanges
• 1 × Wall holder
• 3 × Washers
• 2 × Wall plugs with stainless steel screws

You will also need: Teflon tape for the leg threads, and a pressure pump if your water pressure is low.

• Home Installation ₹2,199, available in serviceable cities (T&C).
• Watch our installation videos, or download the Installation Guide from the Downloads tab.
• Wall points: hot and cold 1/2 Inch (15 mm) points with 150–185 mm centres, at standard mixer point height.
• Water supply: hot and cold, or two cold supplies. Working pressure 1–12 bar; max hot water 75 °C.
• We recommend 40 PSI (about 2.8 bar) at the inlet from a standard pressure pump (1.5 HP, 24-litre tank). Water pressure is low without a pump.
• Works with storage geysers. Not suitable for tankless (flow-activated) instant water heaters.
• Hot and cold are marked on the product. Flush the pipes before fitting.
• You will need Teflon tape for the leg threads.

Delivery

• Check delivery to your pincode on this page.
• Delivered by Ruhe? Record one continuous, unedited video from the sealed box and label through to opening.
• Report any damage within 48 hours of delivery, before fitting – details.
• Marketplace orders follow the marketplace's return policy.
• Fully unpack only when you are ready to install; keep the carton until installation is done.
